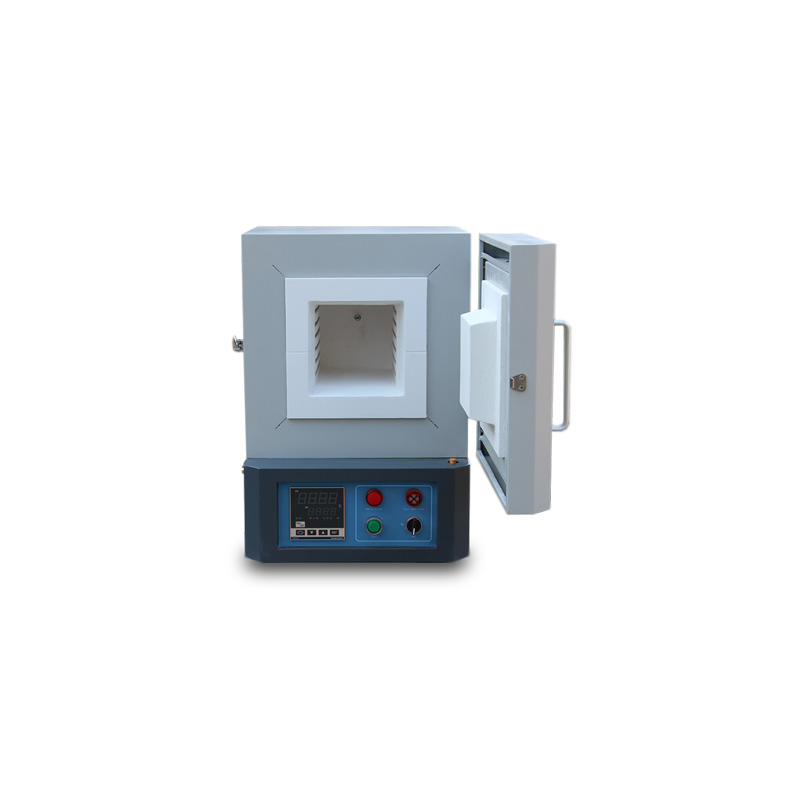

Muffle Furnace 1200℃ Series

Model: TM Series

TOP INSTRUMENT Muffle Furnaces 1200℃ Series feature the spiral wire coils embedded in high alumina fiber insulation. Max working temperature 1200 degree C, it is deal for multiple heat treating applications, such as wax burnout, ashing, heat treating, ceramic and glass seal firing, calcination, ignition tests, gravimetric analysis, and heat treating steel parts. They are ideal for heat treating, reacting studies, sintering processes, and ceramic firing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TM Series

  • TOP

Characteristic of Muffle Furnace 1200℃ Series:


Elevate your high-temperature processes with Top Instrument Muffle Furnace 1200℃ Series.


Designed for maximum performance and reliability, the TM Series boasts a Tmax of 1200°C, ensuring it meets the demands of even the most challenging applications. Featuring a fiber-insulated chamber, heating elements embedded on three sides, and a long-life Type N thermocouple, temperature stability and uniformity are guaranteed. Take control of your heating process with the programmable digital temperature controller, offering 32 segments for precise temperature profiles.


Plus, rest assured with our CE certification, providing peace of mind that our furnace meets stringent safety standards.


Overall, these features make the Muffle Furnace 1200℃ Series a reliable and versatile solution for various high-temperature applications, providing precise temperature control, uniform heating, and long-term durability.




ModelTM L5/12TM L12/12TM L30/12
Max temperature1200 degree C
Chamber size200*150*150mm (4.5L)300*200*200mm (12L)500*300*200mm (30L)
Heating elementHRE Alloy wire
Heating sides3
Input220V ,1 phase220V, 1 phase380V, 3 phase
Maximum output3KW4KW7.5KW
Temperature controllerYudian controller (Shimaden is optional)
Thermal coupleN type
CE certificateYes
Warranty18 months
