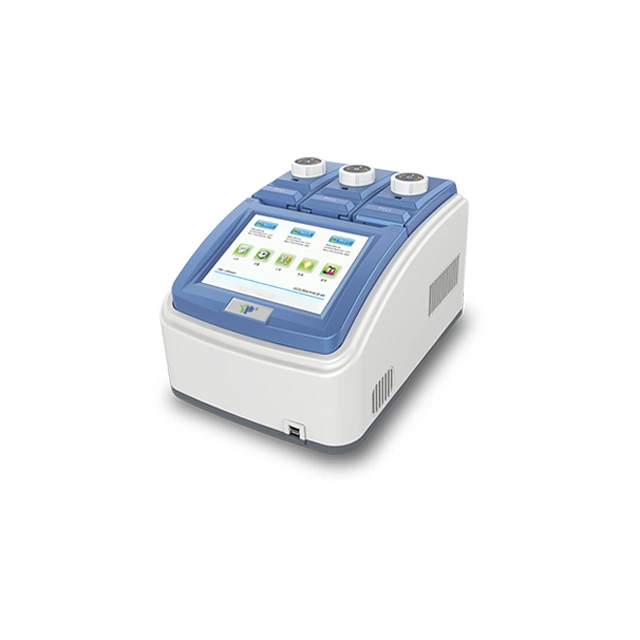

Touch Screen Thermal Cycler for Gradient Experiments

Model: TET Series

TOP INSTRUMENT Touch Screen Thermal Cycler uses long service life peltier. The product combines a variety of advanced technologies: Android system; Color capacitive touch screen; 3 blocks can run gradient experiments independently; built-in WIFI module, mobile APP and PC software control function; email notification function; big storage capacity and etc. All above functions allow PCR's excellent performance and meet higher experiment's need.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TET Series

  • TOP

Characteristic:


  • 6 long service life Peltier heating units and form 3 circuits to control 3 temperature zones.

  • Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.

  • High heating and cooling rate, max. Ramping rate 5 ℃/s, can save your precious time.

  • 3 blocks independently controlled and can run 3 different PCR gradient programs simultaneously.

  • Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation.

  • Android operating system, capacitive touch screen, high-definition TFT display (8”, 800*600 pixels, 16 colors) with graphical interface provides easy use for setting up and monitoring.

  • Built-in 11 standard program file template, can quickly edit the required files.

  • Folder management, user can build directory.

  • The running program and left time can be displayed in real time, allow to edit file when program is running.

  • One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA.

  • Internal flash memory for 10000 typical PCR files in free configurable folders.

  • Hot lid temperature and hot lid work mode can be set to meet different experiment's need.

  • Automatic restart after power failure. When power is restored it can continue to run unfinished program.

  • GLP report records every step to provide accurate data support for experiment result analysis.

  • User Login Management, three-tier permission, password protection function to ensure data security.

  • support U disk to get PCR data, to update software, and USB mouse can also be used to control the PCR instrument.

  • Built-in WIFI module, one machine can control multiple PCR machines at the same time through mobile APP or PC software.

  • Support email-alert function when experiment is over.




Model No.

TET3X

General

TET3XG

Gradient

Capacity

3*(32*0.2ml )

Temperature Range

0-100℃

Heating Rate

5℃/s

5℃/s

Cooling Rate

4℃/s

4℃/s

Uniformity

≤±0.3℃

≤±0.3℃

Accuracy

≤±0.2℃

≤±0.2℃

Display Resolution

0.1℃

Temperature Control

BlockTube

Ramping Rate Adjustable

0.1-5℃

0.1-5℃

Gradient Temp. Range

-

30-100℃

Gradient Spread

-

1-30℃

Hot Lid Temperature

30-110℃

Hot Lid Height Adjustable

Stepless Adjustable

Number of Programs

10000 +(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

100

Time Increment/Decrement

1 Sec - 600 Sec

Temp. Increment/Decrement

0.1-10.0℃

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4℃

Forever

Touchdown Function

Yes

Long PCR Function

Yes

Language

English

Mobile App

Android

LAN to computer

Yes

LCD

8 inch, 800*600 pels, TFT

Communication

USB2.0, LAN, wifi

Dimensions

390mm*270mm*255mm (L*W*H)

Weight

9kg

Power Supply

85-264VAC, 47-63Hz, 600 W
