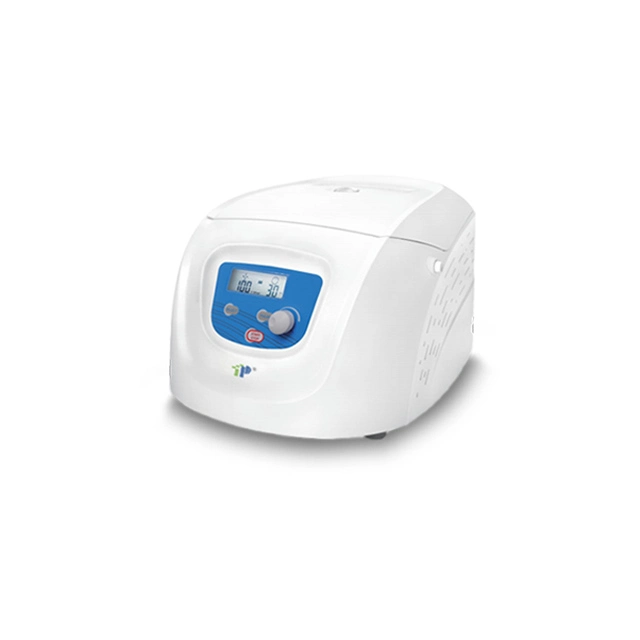

Economical Hematocrit Centrifuge


· Model: TM1224
· Type: Benchtop
· Maximum speed: 500-12000rpm, increment: 100rpm
· Max. RCF: 13680*g
· Maximum capacity: 24*capillary tubes (12000rpm)
· Temperature control: No
· Display: LCD
· Operation: Touch buttons

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • TM1224

  • TOP

Hematocrit Centrifuge is used for determination of erythrocyte fractions in blood as well as micro solution separations. It provides hematocrit values (HCT) for testing in biochemistry, immunity, genetics, blood separation and for general. It has special applications for the photometric determination of bilirubin content in neonate blood samples. It is suitable for extraction of DNA and RNA.


Characteristic:

  • Speed range of 200-12000 rpm Precise and independent.

  • control of speed and time.

  • Easy operation with intuitive menu and LCD display.

  • Maintenance-free brushless DC motor.

  • Pulse operation for fast and convenient quick spins.

  • Advance features include speed/RCF switch; short-time run function; audible alert function.

  • Safety features include door interlock, overspeed detector; over-temperature detector; automatic internal diagnosis and automatic rotor identification.




Max. Speed [rpm]

500-12000rpm, increment: 100rpm

Max. RCF [*g]

13680*g

Speed Accuracy [rpm]

±100

Rotor Capacity

1 type rotor, Hhematocrit rotor: 24*capillary tubes (12000rpm)

Run Time

10sec-99min-HOLD (Continuous operation)

Driving Motor

Brushless DC motor

Safety Devices

Door interlock

Power

Single-phase, 200V-240V, 50Hz/60Hz, 5A; 380W

Noise level [dB]

≤60

Acceleration
/Braking time [Sec]

40s↑40s↓

Dimensions [mm]

(L)280*(W)364*(H)213

Weight

10kg

Additional Features

Speed/RCF switch; Short-time run function; sound-alert function
