PM100-Pro
TOP

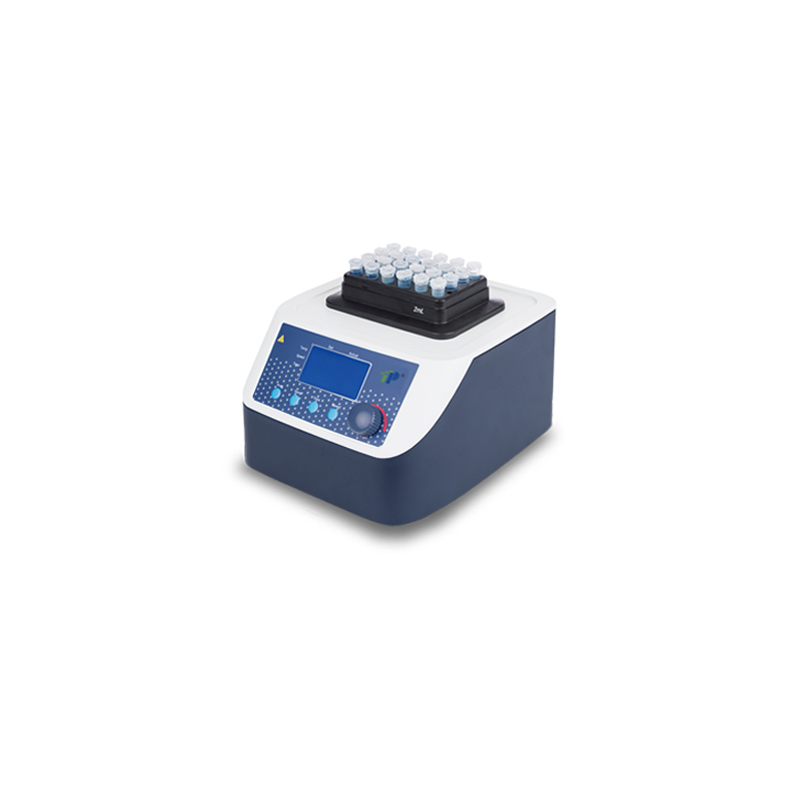

TOP INSTRUMENT Thermo Mix with Heating Dry Bath Incubator implement precise and efficient heating and mixing, with excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial culture, etc.
Characteristic:
Clear and easy-to-read TFT screen.
Excellent performance for temperature controlled mix-ing applications.
Up to 9 user define programs.
A wide range of heating blocks to accommodate tubes with different capacities.
Aluminum heating blocks enhance heat transfer.
Easily interchangeable blocks with magnetic adhesion and without any tools..
A transparent plastic lid is available to better preserve the temperature.
TOP INSTRUMENT Thermo Mix with Heating Dry Bath Incubator implement precise and efficient heating and mixing, with excellent temperature accuracy and uniformity, offering a wide range of applications, such as gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial culture, etc.
Characteristic:
Clear and easy-to-read TFT screen.
Excellent performance for temperature controlled mix-ing applications.
Up to 9 user define programs.
A wide range of heating blocks to accommodate tubes with different capacities.
Aluminum heating blocks enhance heat transfer.
Easily interchangeable blocks with magnetic adhesion and without any tools..
A transparent plastic lid is available to better preserve the temperature.
Functions | Heating & mixing |
Temperature range | Heating: room temp.-100℃ |
Temperature control accuracy [@20-45°C] | ± 0.5°C |
Temperature setting range | 15-100℃ |
Termperature uniformity [@20-45℃] | Max. ±0.5°C |
Max. heating rate | 5.5°C/min |
Max. cooling rate | - |
Mixing speed | 200-1500rpm |
Mixing orbit | ф3mm |
Display | TFT |
Memory | Up to 9 programs |
Overheating protection | 150°C |
Heating block material | Aluminum |
Voltage | 100-240V, 50Hz/60Hz |
Power | 200W |
Dimension [W*D*H] (without the heating block) | 200*235*120mm |
Weight | 7.3kg |
Functions | Heating & mixing |
Temperature range | Heating: room temp.-100℃ |
Temperature control accuracy [@20-45°C] | ± 0.5°C |
Temperature setting range | 15-100℃ |
Termperature uniformity [@20-45℃] | Max. ±0.5°C |
Max. heating rate | 5.5°C/min |
Max. cooling rate | - |
Mixing speed | 200-1500rpm |
Mixing orbit | ф3mm |
Display | TFT |
Memory | Up to 9 programs |
Overheating protection | 150°C |
Heating block material | Aluminum |
Voltage | 100-240V, 50Hz/60Hz |
Power | 200W |
Dimension [W*D*H] (without the heating block) | 200*235*120mm |
Weight | 7.3kg |
Cat.No. | Blocks | Speed | Capacity | Diameter*Depth |
18900401 | 1500rpm | 24*0.5mL | 8.1*26mm | |
18900402 | 1500rpm | 24*1.5mL | 10.9*30.8mm | |
18900403 | 1500rpm | 24*2mL | 10.9*30.8mm | |
18900404 | 1500rpm | 8*5mL (round bottom) | 13.6*42mm | |
18900405 | 1400rpm | 8*5mL (cone bottom) | 17*51.5mm | |
18900406 | 800rpm | 8*15mL | 16.9*80mm | |
18900407 | 600rpm | 4*50mL | 29.6*80mm | |
18900420 | 1500rpm | 0.2mL*96 PCR plate | - | |
18900423 | 1500rpm | microplate | - |
Cat.No. | Blocks | Speed | Capacity | Diameter*Depth |
18900401 | 1500rpm | 24*0.5mL | 8.1*26mm | |
18900402 | 1500rpm | 24*1.5mL | 10.9*30.8mm | |
18900403 | 1500rpm | 24*2mL | 10.9*30.8mm | |
18900404 | 1500rpm | 8*5mL (round bottom) | 13.6*42mm | |
18900405 | 1400rpm | 8*5mL (cone bottom) | 17*51.5mm | |
18900406 | 800rpm | 8*15mL | 16.9*80mm | |
18900407 | 600rpm | 4*50mL | 29.6*80mm | |
18900420 | 1500rpm | 0.2mL*96 PCR plate | - | |
18900423 | 1500rpm | microplate | - |
