P-FlatSpin
TOP

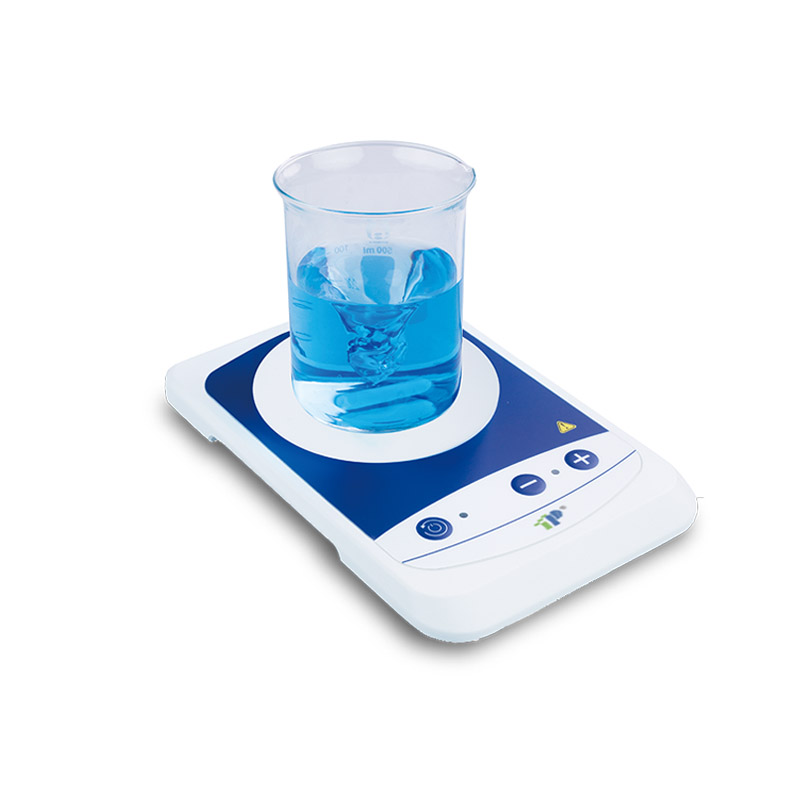

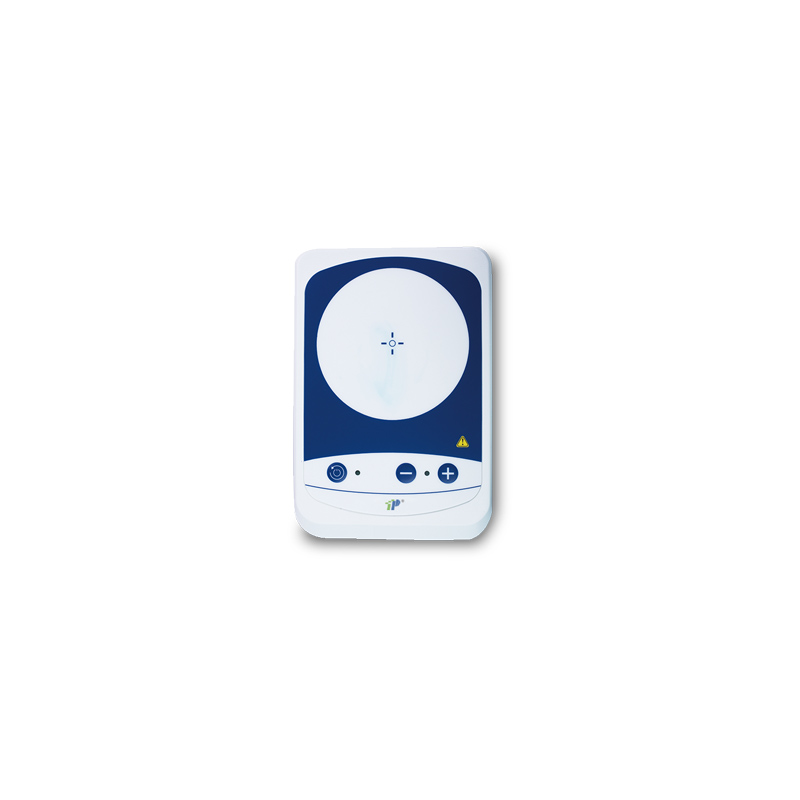

TOP INSTRUMENT Ultra-flat Compact Magnetic Stirrer is a motor less magnetic stirrer available in portable shape and size with high speed range up to 1500rpm. P-FlatSpin with PET top workplate is suitable for small volume stirring applications. The device is easy to use and requires minimal maintenance, making it a popular choice for laboratory professionals.
Characteristic:
Light in weight, portable and easy to operate.
Electronic speed regulation: from 0-1100rpm.
High resistance to chemicals.
Maintenance-free ultra-flat magnetic stirrer.
Auto reverse rotation ensures enhanced mixing.
TOP INSTRUMENT Ultra-flat Compact Magnetic Stirrer is a motor less magnetic stirrer available in portable shape and size with high speed range up to 1500rpm. P-FlatSpin with PET top workplate is suitable for small volume stirring applications. The device is easy to use and requires minimal maintenance, making it a popular choice for laboratory professionals.
Characteristic:
Light in weight, portable and easy to operate.
Electronic speed regulation: from 0-1100rpm.
High resistance to chemicals.
Maintenance-free ultra-flat magnetic stirrer.
Auto reverse rotation ensures enhanced mixing.
Workplate dimension | φ90mm |
Workplate material | PET |
Motor type | Motorless |
Motor rating output | 3W |
Power | 5W |
Voltage | 100-120/200-240V, 50/60Hz |
Stirring positions | 1 |
Max. stirring volume [H2O] | 0.8L |
Max. magnetic bar [length] | 40mm |
Speed range | 15-1500rpm |
Speed setting | Touch key |
Protection class | IP65 |
Dimension [W*D*H] | 175*120*15mm |
Weight | 0.3kg |
Permissible ambient temperature and humidity | 5-40C, 80%RH |
Workplate dimension | φ90mm |
Workplate material | PET |
Motor type | Motorless |
Motor rating output | 3W |
Power | 5W |
Voltage | 100-120/200-240V, 50/60Hz |
Stirring positions | 1 |
Max. stirring volume [H2O] | 0.8L |
Max. magnetic bar [length] | 40mm |
Speed range | 15-1500rpm |
Speed setting | Touch key |
Protection class | IP65 |
Dimension [W*D*H] | 175*120*15mm |
Weight | 0.3kg |
Permissible ambient temperature and humidity | 5-40C, 80%RH |
![]() | ![]() | ![]() | ![]() |
Blue carrying plate (18900001) | Blue Fixed ring(18900065) | Red quarter pie (18900002) | Purple quarter pie (18900003) |
![]() | ![]() | ![]() | ![]() |
Blue quarter pie(18900004) | Black quarter pie (18900005) | Green quarter pie (18900048) | Golden quarter pie (18900049) |
![]() | ![]() | ![]() | |
Reaction block for 50mL round bottom flask(18900080) | Reaction block for 100mL round bottom flask (18900081) | Reaction block for 250mL round bottom flask (18900082) | Reaction block for 500mL round bottom flask (18900083) |
![]() | ![]() | ![]() | ![]() |
F101 protective cover (18900019) | PT1000-new | PT1000-B (18900136) | Support clamp of PT1000 (18900017) |
![]() | ![]() | ![]() | ![]() |
Blue carrying plate (18900001) | Blue Fixed ring(18900065) | Red quarter pie (18900002) | Purple quarter pie (18900003) |
![]() | ![]() | ![]() | ![]() |
Blue quarter pie(18900004) | Black quarter pie (18900005) | Green quarter pie (18900048) | Golden quarter pie (18900049) |
![]() | ![]() | ![]() | |
Reaction block for 50mL round bottom flask(18900080) | Reaction block for 100mL round bottom flask (18900081) | Reaction block for 250mL round bottom flask (18900082) | Reaction block for 500mL round bottom flask (18900083) |
![]() | ![]() | ![]() | ![]() |
F101 protective cover (18900019) | PT1000-new | PT1000-B (18900136) | Support clamp of PT1000 (18900017) |
