TP Series
TOP

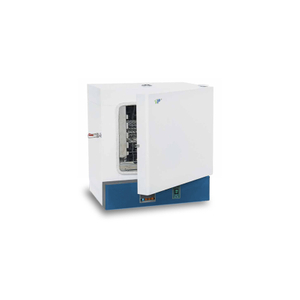

TOP INSTRUMENT Drying And Cultivation Dual-purpose Oven is a specialized laboratory equipment used for drying and incubation of samples at specific temperatures. The dual-purpose design allows for flexibility in lab operations, reducing the need for multiple pieces of equipment. It is suitable for industrial and mining enterprises, universities, colleges, scientific research institutes, medical and health units, laboratories for drying, baking, wax melting and heat treatment.
Characteristic:
The shell of the product is processed by high-quality cold plate, and the surface is treated by spraying process.
The studio chooses 304 mirror stainless steel for processing and manufacturing.
The intelligent liquid crystal temperature control instrument has the functions of timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning, automatic fan speed regulation, door control and other functions (opening the door and automatically turning off the heating can effectively prevent the machine from overheating).
The thickened double-layer tempered glass observation window is convenient for observing the changes of the items in the box.
It adopts a new type of synthetic silica gel sealing strip, which has a beautiful appearance, can operate at high temperature for a long time, and has a longer service life.
Additional functions such as over-temperature protector, timer, program control instrument, printer or 485 interface are optional.
The equipment is equipped with a fan speed regulating switch, and the user can adjust the fan speed or automatic fan speed according to the needs.
Precise: High-precision microcomputer liquid crystal display temperature controller, accurate and reliable temperature control.
Rapid: heating up quickly, forced convection, dry and hot air directly passing through the heated object, drying and disinfection time is significantly shortened.
Safety: It will be automatically interrupted when the temperature exceeds the limit to ensure the safety of personnel and instruments.
Convenience: You can adjust the three speeds of the fan through the instrument settings, timing control, and the partition can be moved to facilitate cleaning in the box.
TOP INSTRUMENT Drying And Cultivation Dual-purpose Oven is a specialized laboratory equipment used for drying and incubation of samples at specific temperatures. The dual-purpose design allows for flexibility in lab operations, reducing the need for multiple pieces of equipment. It is suitable for industrial and mining enterprises, universities, colleges, scientific research institutes, medical and health units, laboratories for drying, baking, wax melting and heat treatment.
Characteristic:
The shell of the product is processed by high-quality cold plate, and the surface is treated by spraying process.
The studio chooses 304 mirror stainless steel for processing and manufacturing.
The intelligent liquid crystal temperature control instrument has the functions of timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning, automatic fan speed regulation, door control and other functions (opening the door and automatically turning off the heating can effectively prevent the machine from overheating).
The thickened double-layer tempered glass observation window is convenient for observing the changes of the items in the box.
It adopts a new type of synthetic silica gel sealing strip, which has a beautiful appearance, can operate at high temperature for a long time, and has a longer service life.
Additional functions such as over-temperature protector, timer, program control instrument, printer or 485 interface are optional.
The equipment is equipped with a fan speed regulating switch, and the user can adjust the fan speed or automatic fan speed according to the needs.
Precise: High-precision microcomputer liquid crystal display temperature controller, accurate and reliable temperature control.
Rapid: heating up quickly, forced convection, dry and hot air directly passing through the heated object, drying and disinfection time is significantly shortened.
Safety: It will be automatically interrupted when the temperature exceeds the limit to ensure the safety of personnel and instruments.
Convenience: You can adjust the three speeds of the fan through the instrument settings, timing control, and the partition can be moved to facilitate cleaning in the box.
Model | TP-20BE | TP45BE | TP-72BE | TP-125BE | TP-210BE |
Capacity | 20L | 45L | 72L | 125L | 210L |
Power supply | 220V 50HZ | ||||
Temperature control range | RT+5-80°C for an incubator, 80-300°C for a drying oven | ||||
Temperature resolution | 0.1℃ | ||||
Temperature fluctuation | ±0.5°C for an incubator, ±1°C for a drying oven | ||||
Timing range | 0~9999min | ||||
Power | 600W | 1000W | 1500W | 2000W | 3000W |
Studio Size (D*W*H)mm | 260*280*280 | 350*360*350 | 400*400*450 | 450*500*550 | 500*600*700 |
Dimensions (D*W*H)mm | 450*420*590 | 550*495*700 | 590*535*800 | 650*635*1040 | 705*735*1190 |
Package size (D*W*H)mm | 510*490*690 | 600*550*790 | 650*600*880 | 720*700*1130 | 790*750*1280 |
Net weight/gross weight KG | 24/27 | 38/46 | 47/55 | 71/81 | 85/97 |
Model | TP-20BE | TP45BE | TP-72BE | TP-125BE | TP-210BE |
Capacity | 20L | 45L | 72L | 125L | 210L |
Power supply | 220V 50HZ | ||||
Temperature control range | RT+5-80°C for an incubator, 80-300°C for a drying oven | ||||
Temperature resolution | 0.1℃ | ||||
Temperature fluctuation | ±0.5°C for an incubator, ±1°C for a drying oven | ||||
Timing range | 0~9999min | ||||
Power | 600W | 1000W | 1500W | 2000W | 3000W |
Studio Size (D*W*H)mm | 260*280*280 | 350*360*350 | 400*400*450 | 450*500*550 | 500*600*700 |
Dimensions (D*W*H)mm | 450*420*590 | 550*495*700 | 590*535*800 | 650*635*1040 | 705*735*1190 |
Package size (D*W*H)mm | 510*490*690 | 600*550*790 | 650*600*880 | 720*700*1130 | 790*750*1280 |
Net weight/gross weight KG | 24/27 | 38/46 | 47/55 | 71/81 | 85/97 |
